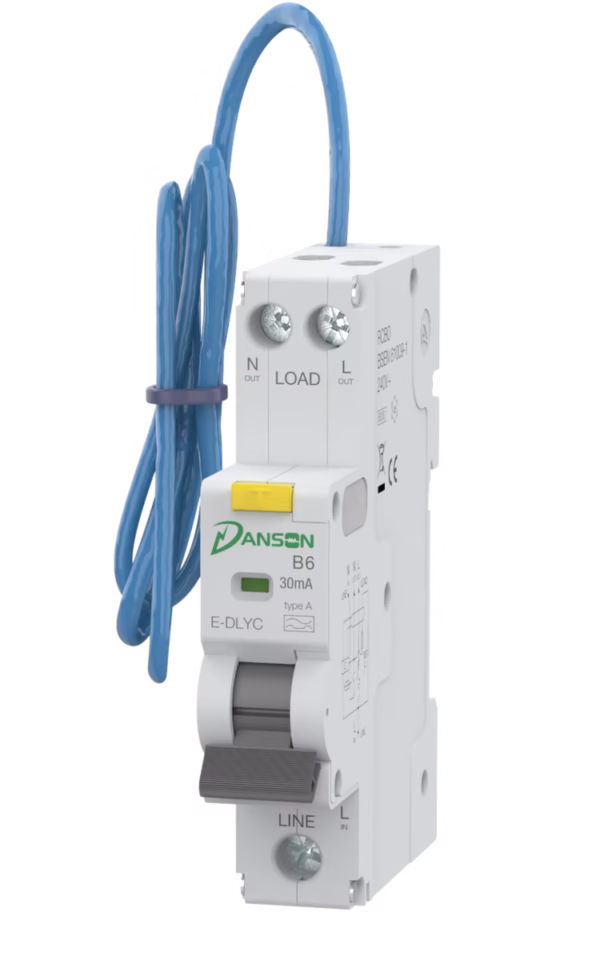

RCBOs

General information

Standards: BS EN IEC 61009-1 , BS EN IEC 61009-2-2
Width in number of modular spacing: 1
Design of pole: 1P+N
Number of protected poles: 1
Neutral can be switched: Yes
Position of neutral terminal: Left
Trip unit technology: Thermal-magnetic
Tripping characteristic: Type B
Rated current In [ A ]: 6
Residual current-detection principle: Electronic (voltage dependent)
Type of residual current: Type A
Residual current protection time delay: General type without time delay
Rated residual operating current (IΔn) [ mA ]: 30

Breaking capacity

• Rated ultimate short-circuit breaking capacity (Icn) [ kA ]: 6
• Rated residual breaking and making capacity (IΔm) [ kA ]: 2

Energy limiting class: 3
Barcode: (EAN-13) 5060690136316
